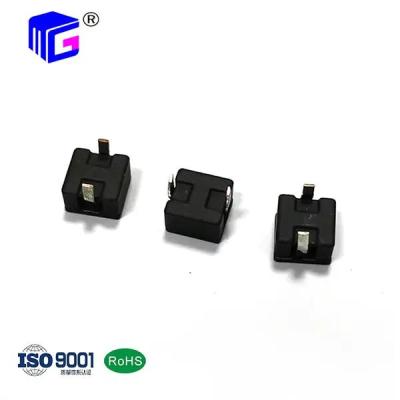

Inductor DS Series

• Posted by magnetic cube Jan 22 Filed in Business #carbon inductor  59 views
  click to rate



  Height: 8mm Max.



  Footprint: 15.5*11mm Max.



  Current Rating: up to 50Apk.



  Inductance Component Range: 0.14μH to 2.25μH.



  As one of the trusted carbon inductor suppliers, we provide high-quality electronic component wholesale to meet customer's needs.



  Explanation of part numbers

  Boundary dimension

  Series Size A B C D E F

  DS4280 11.0 Max 15.5 Max 8.0 Max 3.2 ±0.5 12.7 ±0.5 1.6 Ref.



  Packing Information

  Electrical characteristics:

  PART NO. L(0A)(uH)(±20%) Irms(A)(Typ.) Isat(A)(Typ.) DCR(mΩ )(Typ.) DCR(mΩ)Max. PDF

  DS4280-R28M 0.28 38.7 45 0.7 0.8



  As an inductive components manufacturing inc, we will do our best to meet all the needs of customers.
